MB AMD AM4 Gigabyte A520M K V2

6.990,00  rsd

sa PDV-om

SKU 4719331852771 Kategorije ,

Nema na zalihama

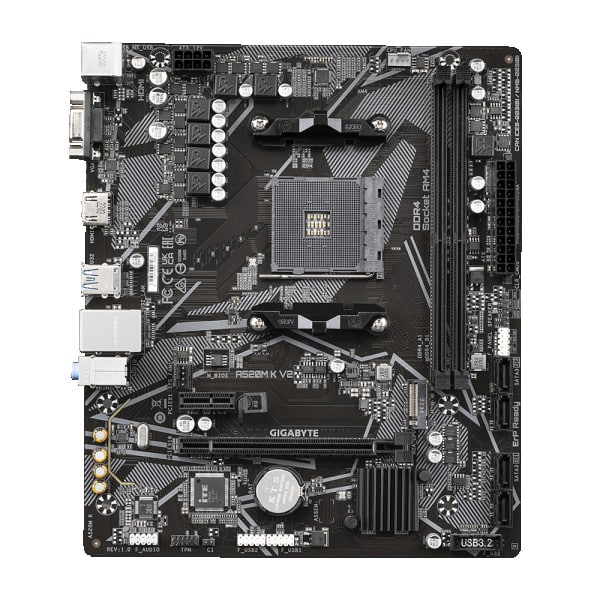

Model Gigabyte A520M K V2 Matična ploča DDR4 AM4 Micro ATX
Procesorsko podnožje (Socket) AMD Socket AM4
Skup čipova (Chipset) AMD A520
Podrška za procesore AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors
Tip memorije (RAM) DDR4
Broj memorijskih slotova 2x 288-Pin DDR4
Podrška za memorije 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Podrška za grafiku – portovi Integrated Graphics Processor:

1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Maximum shared memory of 16 GB
Slotovi za proširenja CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 portovi 1x M.2 Socket 3
Čuvanje podataka – portovi CPU:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:
4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10
U.2 portovi nema
SATA Express portovi nema
SATA portovi 4x SATA 6Gb/s
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Zvuk (Audio) Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
USB portovi CPU:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

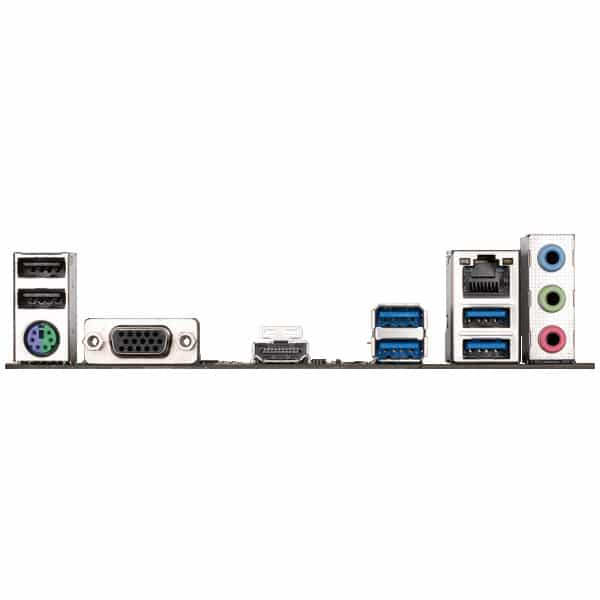

Konektori na zadnjoj strani 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Unutrašnji konektori 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Posebne mogućnosti Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Operativni sistem Windows® 10; Windows® 11
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Format Micro ATX

Procesorsko ležište (socket)

Ukupno USB priključaka

Tip memorije

Memorijski slotovi

Format

Brand

Gigabyte
